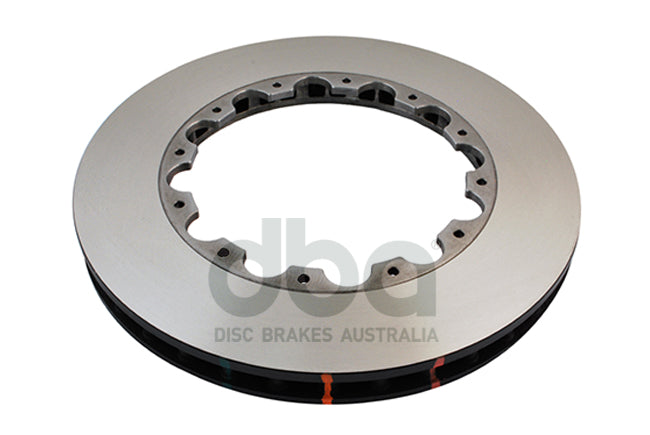

DBA52923.1R

Řada 5000 - hladký povrch - rotor pouze pravá ruka

Diameter [mm]	355
Thickness [mm]	32
Disc Vent	48 Curved Vanes
Annulus [mm] (Maximum useable pad width)	53,5
Pitch Circle Diameter (P.C.D.)	233
Inside Diameter [mm]	248
Diameter & Number of Bolt Holes [mm]	8.15 (x10)
Air Gap [mm]	16
Offset [mm]	2,5
Flange Inside Diameter [mm]	209
Flange Thickness [mm]	8
Hole Type	Elongated Hole
Stage	Stage 5
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info
Replacement Nuts	Included
