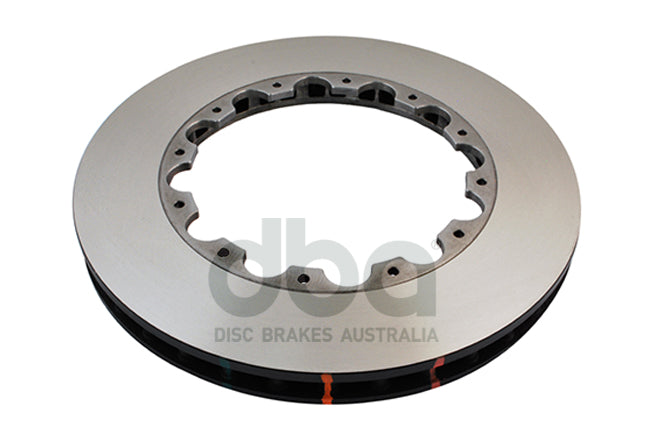

DBA52835.1

Řada 5000 – hladký povrch – pouze rotor

Diameter [mm]	330
Thickness [mm]	22
Disc Vent	Kangaroo Paw
Annulus [mm] (Maximum useable pad width)	53
Pitch Circle Diameter (P.C.D.)	203,2
Inside Diameter [mm]	224
Diameter & Number of Bolt Holes [mm]	6.4 (x12)
Air Gap [mm]	7
Offset [mm]	0
Flange Inside Diameter [mm]	190
Flange Thickness [mm]	7
Hole Type	Round Hole
Stage	Stage 5
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info
Replacement Nuts	Included
