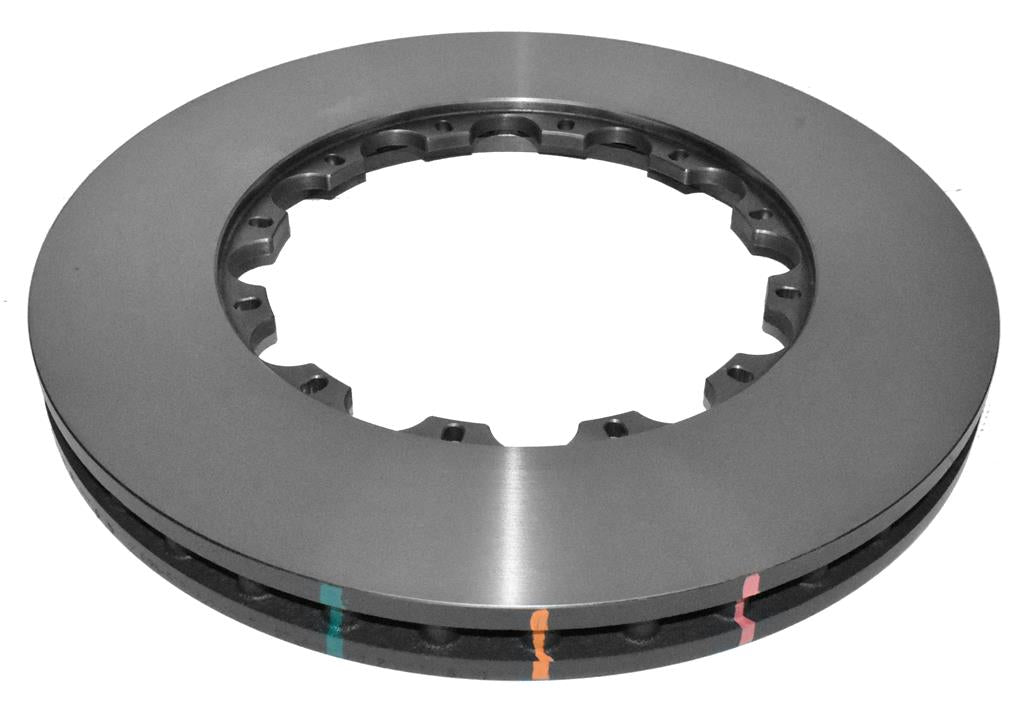

DBA52834.1

Řada 5000 – hladký povrch – pouze rotor

Diameter [mm]	365
Thickness [mm]	34
Disc Vent	Kangaroo Paw
Annulus [mm] (Maximum useable pad width)	58,6
Pitch Circle Diameter (P.C.D.)	210
Inside Diameter [mm]	247,8
Diameter & Number of Bolt Holes [mm]	6.4 (x12)
Air Gap [mm]	14
Offset [mm]	-6,35
Flange Inside Diameter [mm]	194
Flange Thickness [mm]	6,35
Hole Type	Elongated Hole
Stage	Stage 5
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info
Replacement Nuts	Included
