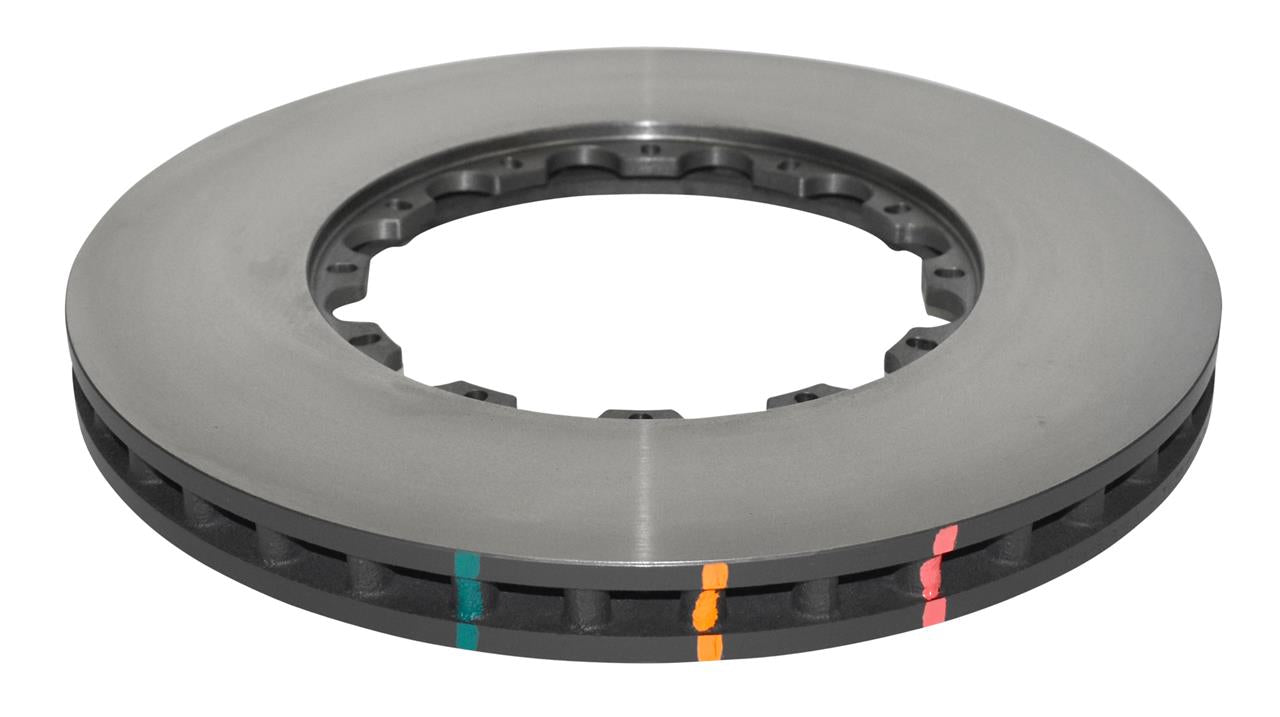

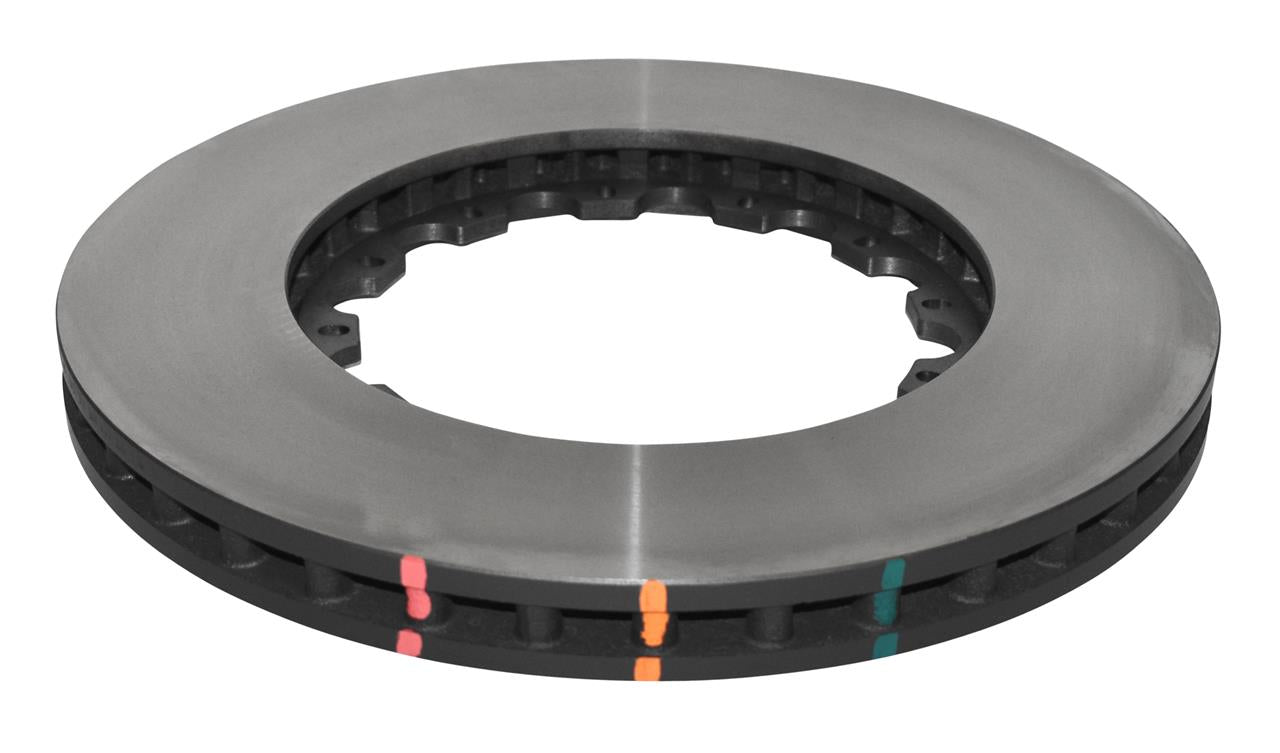

Řada 5000 – hladký povrch – pouze rotor
| Diameter [mm] |
345 |
| Thickness [mm] |
30 |
| Disc Vent |
Kangaroo Paw |
| Annulus [mm] (Maximum useable pad width) |
67 |
| Pitch Circle Diameter (P.C.D.) |
185 |
| Inside Diameter [mm] |
211 |
| Diameter & Number of Bolt Holes [mm] |
6.4 (x12) |
| Air Gap [mm] |
13,5 |
| Offset [mm] |
-6,35 |
| Flange Inside Diameter [mm] |
170 |
| Flange Thickness [mm] |
6,35 |
| Hole Type |
Elongated Hole |
| Stage |
Stage 5 |
| Tech Bulletins |
Bedding in Brakes |
| Tech Bulletins |
How to clean a Disc Rotor before fitting |
| Tech Bulletins |
Motorsport - Important Info |
| Replacement Nuts |
Included |
