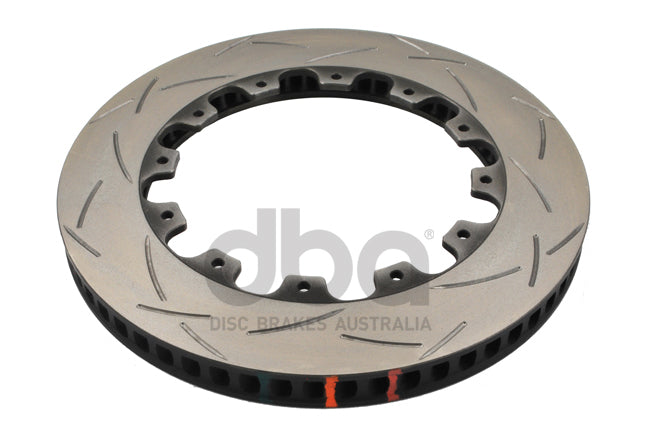

Řada 5000 - T3 drážkovaný - pouze rotor levá ruka
| Diameter [mm] |
308 |
| Thickness [mm] |
26 |
| Disc Vent |
60 Curved Vanes |
| Annulus [mm] (Maximum useable pad width) |
47,5 |
| Pitch Circle Diameter (P.C.D.) |
190,5 |
| Inside Diameter [mm] |
213 |
| Diameter & Number of Bolt Holes [mm] |
6.4 (x12) |
| Air Gap [mm] |
14 |
| Offset [mm] |
0 |
| Flange Inside Diameter [mm] |
174 |
| Flange Thickness [mm] |
6,6 |
| Hole Type |
Round Hole |
| Stage |
Stage 5 |
| Tech Bulletins |
Bedding in Brakes |
| Tech Bulletins |
How to clean a Disc Rotor before fitting |
| Tech Bulletins |
Motorsport - Important Info |
| Replacement Nuts |
Included |
