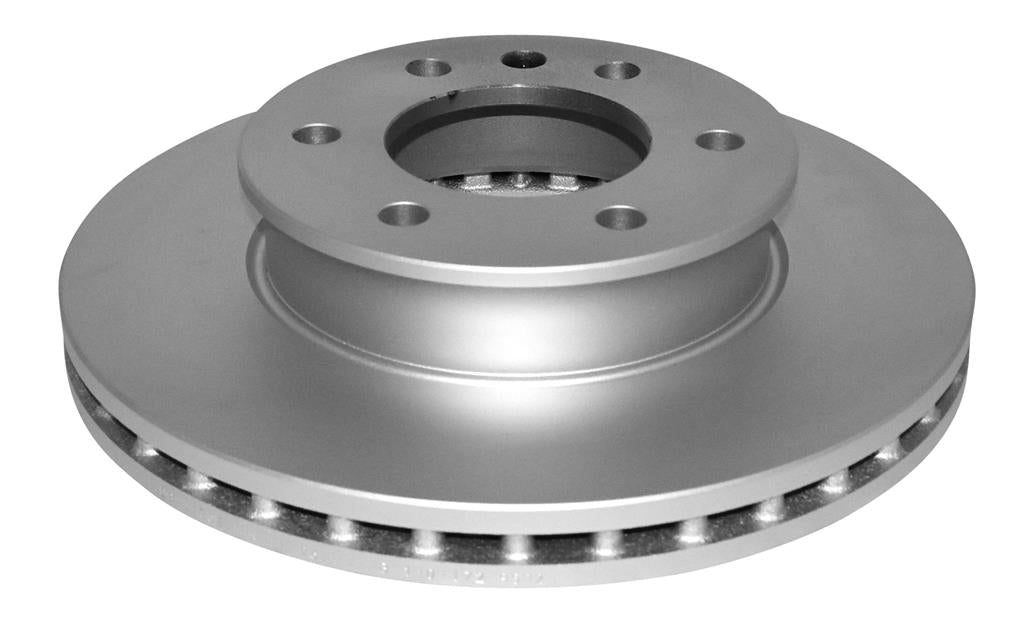

| Diameter [mm] | 330 |
| Disc Vent | Kangaroo Paw |
| Number of Holes | 5 |
| Inner Diameter [mm] | 75 |
| Minimum Thickness [mm] | 22,4 |
| Thickness [mm] | 24 |
| Height [mm] | 66 |
| Pitch Circle [mm] | 120 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| ECE R90 number | E11*90R02/06*59758*00 |
| Compatibility | |||||||
|---|---|---|---|---|---|---|---|
| BMW | 5 Series (F10) 518 | 2.0 TD (2013-2017) | 2013-2017 | Brake Caliper: ATE | Front | Brake Pads: DB2295 | Disc Diameter [mm]: 330 |
| BMW | 5 Series (F10) 520 | 2.0 TD (2010-2017) | 2010-2017 | Brake Caliper: ATE | Front | Brake Pads: DB2295 | Disc Diameter [mm]: 330 |
| BMW | 5 Series (F10) 520 | 2.0 Turbo (2012-2017) | 2012-2017 | Brake Caliper: ATE | Front | Brake Pads: DB2295 | Disc Diameter [mm]: 330 |
| BMW | 5 Series (F10) 523 | 3.0 (2010-2012) | 2010-2012 | Brake Caliper: ATE | Front | Brake Pads: DB2295 | Disc Diameter [mm]: 330 |
| BMW | 5 Series (F10) 525 | 2.0 TD (2011-2017) | 2011-2017 | Brake Caliper: ATE | Front | Brake Pads: DB2295 | Disc Diameter [mm]: 330 |
| BMW | 5 Series (F10) 525 | 3.0 TD (2010-2017) | 2010-2017 | Brake Caliper: ATE | Front | Brake Pads: DB2295 | Disc Diameter [mm]: 330 |
| BMW | 5 Series (F10) 528 | 2.0 Turbo (2011-2017) | 2011-2017 | Brake Caliper: ATE | Front | Brake Pads: DB2295 | Disc Diameter [mm]: 330 |
| BMW | 5 Series (F10) 528 | 3.0 (2010-2011) | 2010-2011 | Brake Caliper: ATE | Front | Brake Pads: DB2295 | Disc Diameter [mm]: 330 |
| BMW | 5 Series (F11) 518 | 2.0 TD (2013-2017) | 2013-2017 | Brake Caliper: ATE | Front | Brake Pads: DB2295 | Disc Diameter [mm]: 330 |
| BMW | 5 Series (F11) 520 | 2.0 TD (2010-2017) | 2010-2017 | Brake Caliper: ATE | Front | Brake Pads: DB2295 | Disc Diameter [mm]: 330 |
| BMW | 5 Series (F11) 520 | 2.0 Turbo (2012-2017) | 2012-2017 | Brake Caliper: ATE | Front | Brake Pads: DB2295 | Disc Diameter [mm]: 330 |
| BMW | 5 Series (F11) 523 | 3.0 (2010-2012) | 2010-2012 | Brake Caliper: ATE | Front | Brake Pads: DB2295 | Disc Diameter [mm]: 330 |
| BMW | 5 Series (F11) 525 | 2.0 TD (2011-2017) | 2011-2017 | Brake Caliper: ATE | Front | Brake Pads: DB2295 | Disc Diameter [mm]: 330 |
| BMW | 5 Series (F11) 525 | 3.0 TD (2010-2017) | 2010-2017 | Brake Caliper: ATE | Front | Brake Pads: DB2295 | Disc Diameter [mm]: 330 |
| BMW | 5 Series (F11) 528 | 2.0 Turbo (2011-2017) | 2011-2017 | Brake Caliper: ATE | Front | Brake Pads: DB2295 | Disc Diameter [mm]: 330 |
| BMW | 5 Series (F11) 528 | 3.0 (2010-2011) | 2010-2011 | Brake Caliper: ATE | Front | Brake Pads: DB2295 | Disc Diameter [mm]: 330 |
| BMW | 5 Series (xDrive F10) 520 | 2.0 TD (2013-2017) | 2013-2017 | Brake Caliper: ATE | Front | Brake Pads: DB2295 | Disc Diameter [mm]: 330 |
| BMW | 5 Series (xDrive F10) 525 | 2.0 TD (2011-2017) | 2011-2017 | Brake Caliper: ATE | Front | Brake Pads: DB2295 | Disc Diameter [mm]: 330 |
| BMW | 5 Series (xDrive F10) 528 | 2.0 Turbo (2011-2017) | 2011-2017 | Brake Caliper: ATE | Front | Brake Pads: DB2295 | Disc Diameter [mm]: 330 |
| BMW | 5 Series (xDrive F11) 520 | 2.0 TD (2013-2017) | 2013-2017 | Brake Caliper: ATE | Front | Brake Pads: DB2295 | Disc Diameter [mm]: 330 |
| BMW | 5 Series (xDrive F11) 528 | 2.0 Turbo (2011-2017) | 2011-2017 | Brake Caliper: ATE | Front | Brake Pads: DB2295 | Disc Diameter [mm]: 330 |
