Pedders 2 Inch Suspension Lift Kit for Volkswagen Amarok 2023 on 2.0 Models

This suspension lift kit is designed to raise the Volkswagen Amarok with a 2.0 engine from 2023 onwards. It improves ground clearance while retaining ride comfort, making it suitable for vehicles that do not normally carry heavy loads.

Key Features

• 2 Inch lift
• Improved ride comfort
• Increased off-road ground clearance
• TrakRyder Adjustable Foam Cell shocks
• Sintered iron piston shocks with large 40mm bore
• Pre-assembled Ezifit front struts
• Rear leaf springs with required bushes and U bolts
• Backed by a 2 year / 40,000km warranty

Product Overview

This Premium Lift Kit raises the Volkswagen Amarok by approximately 40mm, providing improved ground clearance and appearance. It replaces the original suspension components and is designed to retain ride quality on vehicles that do not usually carry a great deal of weight.

The quoted dimensions assume a standard vehicle. The lift may allow fitment of larger tyres. Additional front equipment such as bull bars or winches can affect the final installed height.

Foam Cell Shock Technology

Foam Cell shock absorbers use a special foam saturated with oil instead of relying on pressurised gas. This design prevents aeration and cavitation, keeping damping forces stable across the full stroke. With greater oil capacity and improved heat dissipation, they resist fade, control temperature, and deliver reliable performance even under demanding use. Their durability makes them well suited for heavy-duty, towing and off-road applications.

Installation & Compatibility

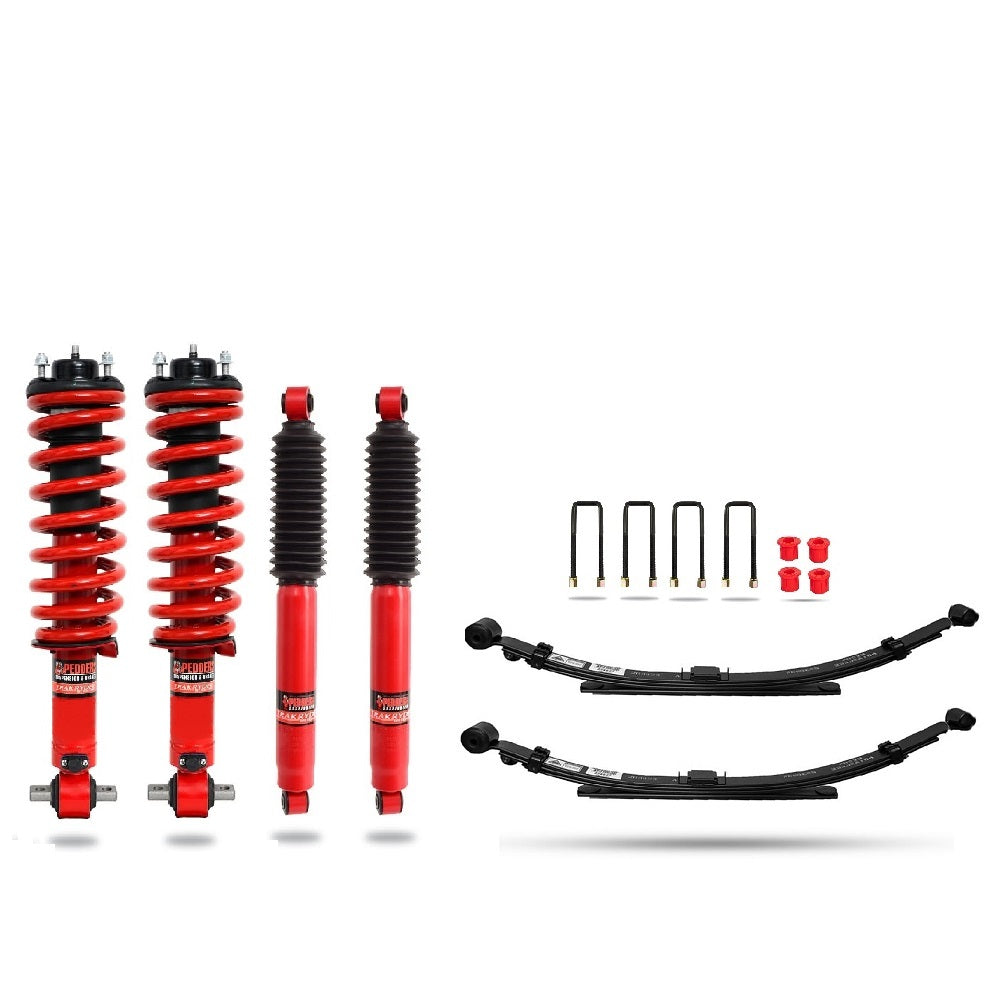

The kit includes pre-assembled Ezifit front struts and new rear leaf springs, along with the necessary bushes and U bolts. These components replace the original items, with no other vehicle modifications required. A professional wheel alignment is strongly recommended after installation for optimum performance.

This kit is primarily suited to vehicles that do not normally operate in a continuously laden state.

Technical Specification

• Lift height: approximately 40mm
• Front height: 605mm hub centre to wheel arch
• Rear height: approximately 50mm higher than standard
• Shock type: TrakRyder Adjustable Foam Cell
• Shock bore size: 40mm
• Included components: Ezifit front struts, rear leaf springs, bushes and U bolts
• Fitment: Volkswagen Amarok 2023 on, 2.0 models
• Warranty: 2 year / 40,000km

Final ride height may vary depending on additional equipment fitted to the vehicle.

Why Choose Pedders

• Matched suspension components designed to work together as a system
• Foam Cell shock technology suited to demanding road and off-road use
• Direct replacement components for straightforward installation
• Supported by a 2 year / 40,000km warranty
