Pedders 2 Inch Heavy Duty Load Carrying and Towing Kit

This heavy duty suspension kit is designed for the Volkswagen Amarok 2023 on, 3.0 V6 models used for load carrying and towing. It improves rear stance and ground clearance while helping to maintain suitable ride comfort when the vehicle is carrying a constant minimum 300kg load.

Key Features

• 2 Inch lift kit
• Improved load carrying and towing ability
• Increased off-road ground clearance
• Sintered iron piston shocks with large 40mm bore
• Premium grade steel front Ezifit Struts
• Includes new rear leaf springs, bushes and U bolts
• 2 Year / 40,000km / 25,000 mile warranty

Product Overview

Do you use your Amarok for load carrying and/or towing? This first-level heavy duty kit is designed primarily to raise the vehicle and improve its load carrying and towing ability. If your Amarok currently sits low at the rear when towing or carrying a load, this kit offers a significant improvement over the standard suspension.

The kit improves load carrying capability compared to the standard Volkswagen Amarok rear springs, but it does require a constant minimum 300kg load to retain good ride comfort. This load figure should include accessories such as a canopy and tow bar.

The suspension lift raises the vehicle by approximately 50mm (see dimensions below), improving ground clearance and vehicle stance. It can be used to accommodate larger tyres. Dimensions quoted assume a standard vehicle; additional front equipment such as winches or bull bars may affect final installed height and may require different springs.

Foam Cell Shock Technology

Foam Cell shock absorbers use a special foam saturated with oil instead of relying on pressurised gas. This design prevents aeration and cavitation, keeping damping forces stable across the full stroke. With greater oil capacity and improved heat dissipation, they resist fade, control temperature, and deliver reliable performance even under demanding use. Their durability makes them well suited for heavy-duty, towing and off-road applications.

Installation & Compatibility

These components replace the original suspension items and are supplied with all necessary bushes and U bolts. No other modifications to the vehicle are required. After fitting, a professional wheel alignment is strongly recommended to ensure optimal handling and tyre wear.

Technical Specification

• Fitment: Volkswagen Amarok 2023 on, 3.0 V6 models
• Lift amount: Approx. 50mm (2 inch)
• Front height: 615mm hub centre to wheel arch
• Rear height: Approx. 50mm higher than standard
• Shock bore size: 40mm
• Recommended constant rear load: Minimum 300kg

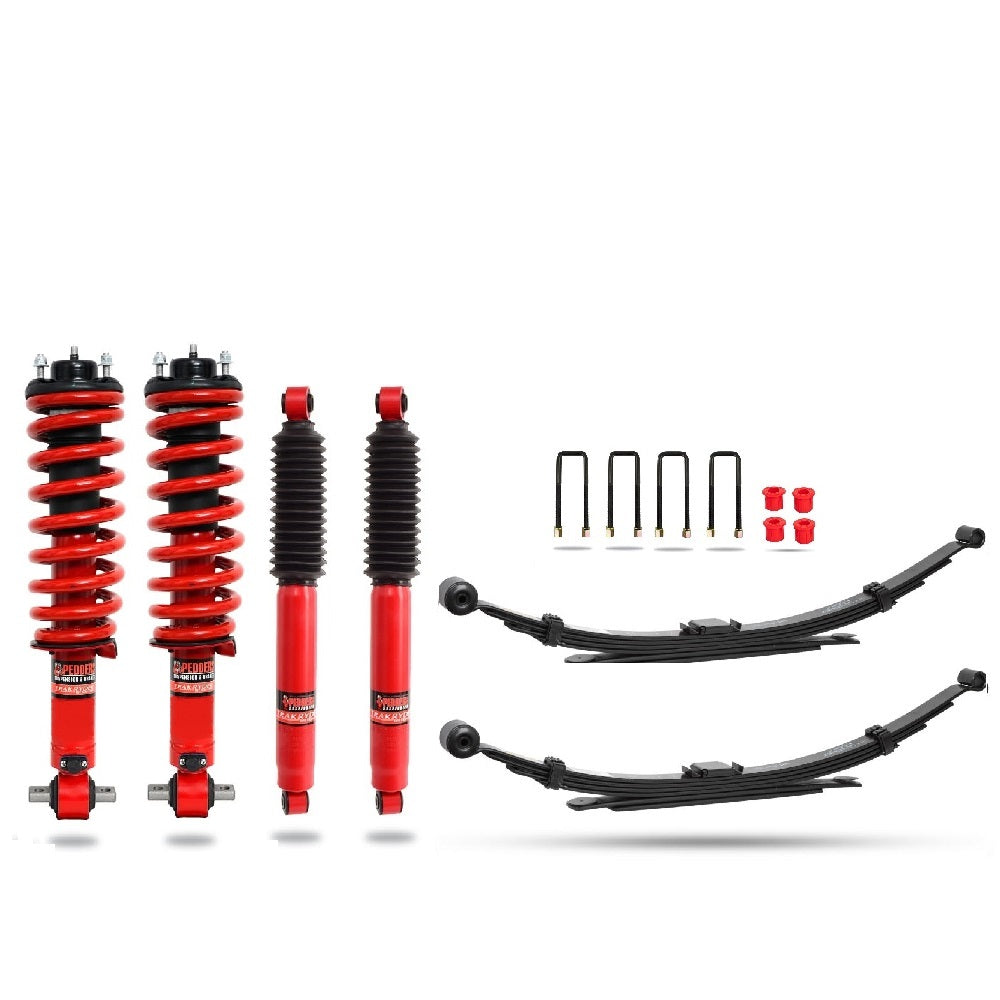

• Included components: Pedders TrakRyder Adjustable Foam Cell shocks, front Ezifit Struts, rear leaf springs, bushes and U bolts
• Warranty: 2 Year / 40,000km / 25,000 mile warranty

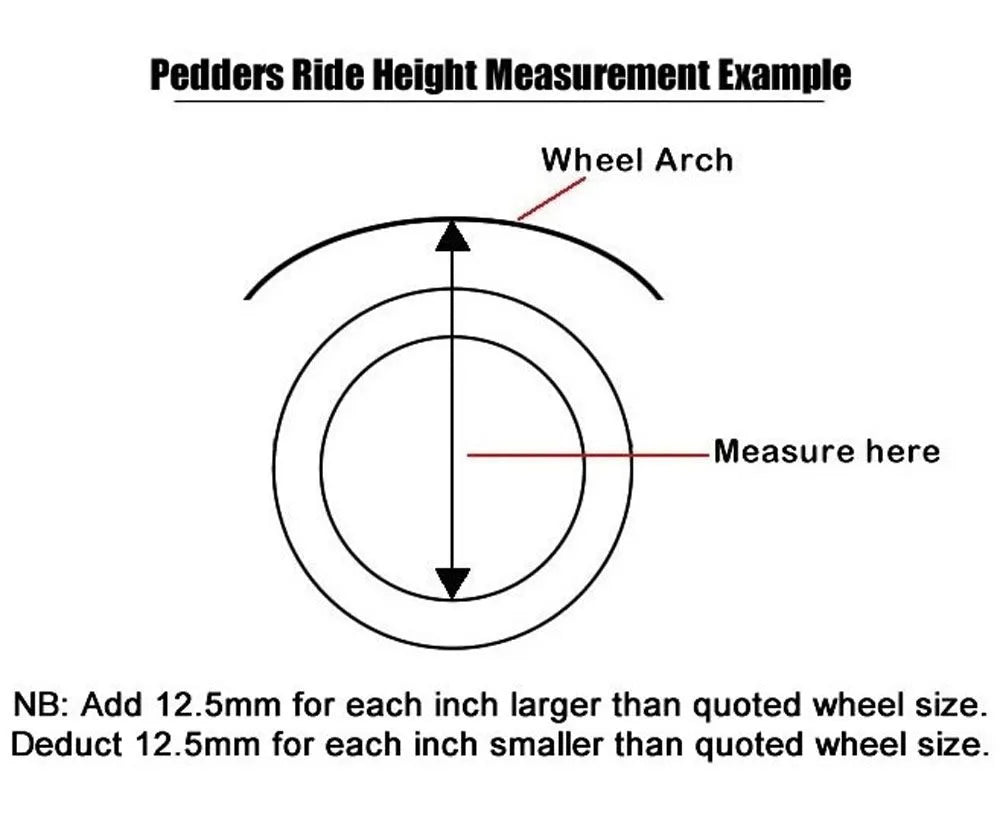

Vehicle heights should be measured as shown in the secondary image. Additional front accessories such as bull bars or winches may affect final ride height and require alternative spring rates.

Why Choose Pedders Suspension

• Heavy duty suspension kit designed specifically for load carrying and towing
• Matched components engineered to work together as a system
• Improves rear stance and control when the vehicle is loaded
• Supported by a 2 Year / 40,000km / 25,000 mile warranty
