Pedders 2 Inch Suspension Lift Kit

This suspension lift kit is designed for Volkswagen Amarok 3.0 V6 models from 2023 onwards. It raises the vehicle by approximately 50mm to improve ground clearance and overall ride comfort while maintaining a balanced on-road feel.

Key Features

• 2 inch suspension lift
• Improved ride comfort
• Increased off-road ground clearance
• Pedders TrakRyder Foam Cell shock absorbers
• Sintered iron piston shocks with large 40mm bore
• Premium grade steel front coil springs
• New rear parabolic leaf springs
• Backed by a 2 year / 40,000km warranty

Product Overview

This Premium Lift Kit replaces the original suspension components with upgraded coils, parabolic rear leaf springs and Foam Cell shock absorbers to deliver improved ground clearance and a more confident stance. It is intended for vehicles that do not regularly carry heavy loads, helping retain ride comfort for everyday driving and light off-road use.

The approximately 50mm lift allows for improved approach angles and can accommodate larger tyres. Vehicles that are regularly used for towing or constant heavy loads should consider heavy-duty alternatives.

Foam Cell Shock Technology

Foam Cell shock absorbers use a special foam saturated with oil instead of relying on pressurised gas. This design prevents aeration and cavitation, keeping damping forces stable across the full stroke. With greater oil capacity and improved heat dissipation, they resist fade, control temperature, and deliver reliable performance even under demanding use. Their durability makes them well suited for heavy-duty, towing and off-road applications.

Installation & Compatibility

The kit components replace the original suspension parts, including front coil springs and rear leaf springs, with all necessary bushes and U bolts supplied. No cutting or welding is required. A professional wheel alignment is strongly recommended after installation to ensure correct handling and tyre wear.

This kit is best suited to comfort-focused use rather than constant heavy load or towing applications.

Technical Specification

• Lift amount: approximately 50mm

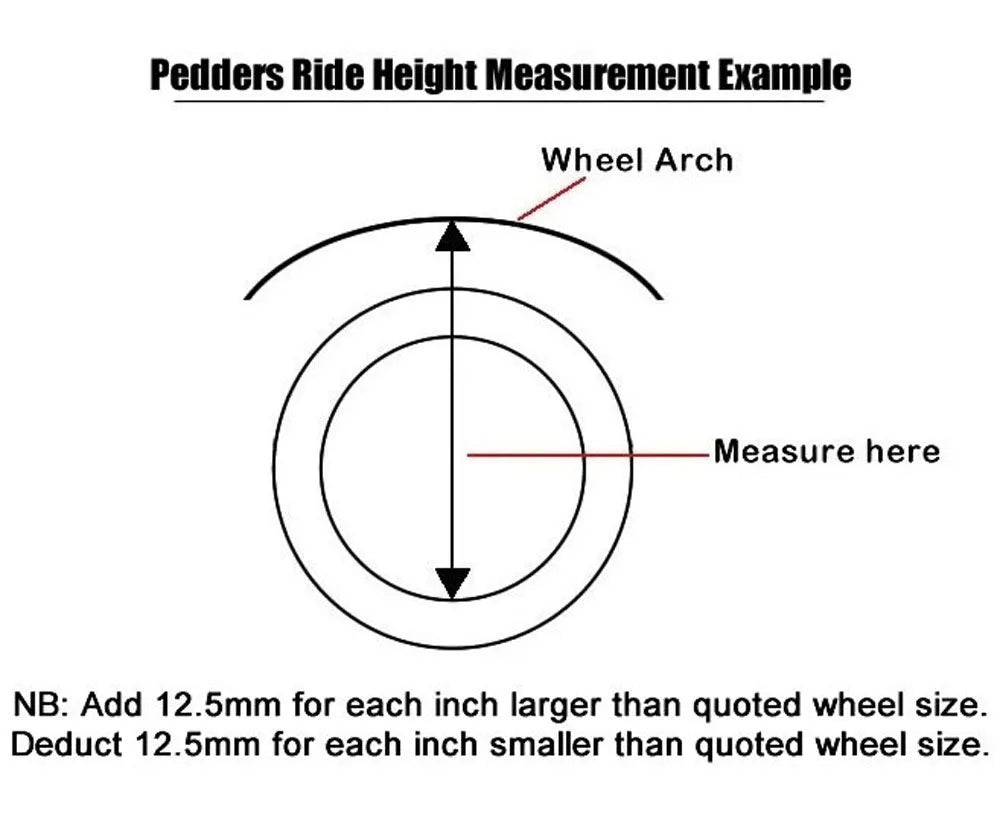

• Front height: 615mm hub centre to wheel arch
• Rear height: approximately 50mm higher than standard
• Shock bore size: 40mm

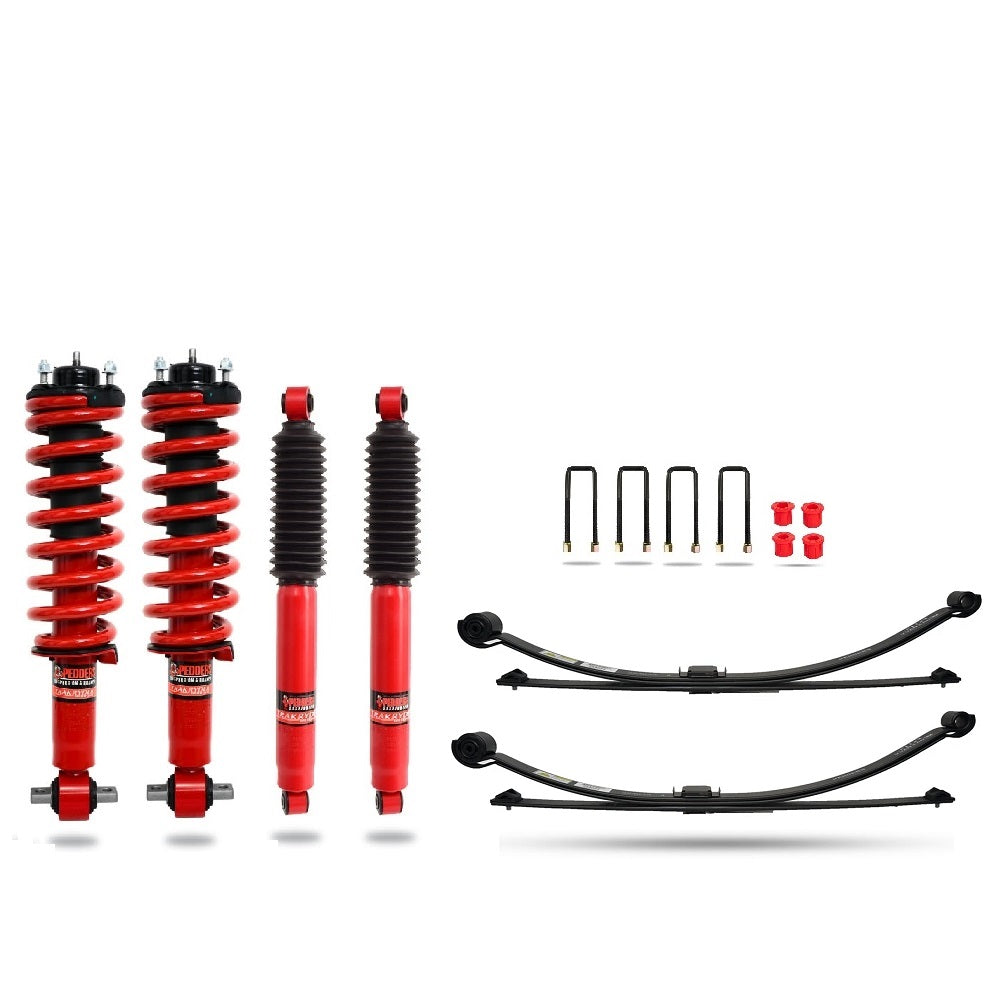

• Included components: front coil springs, rear parabolic leaf springs, Foam Cell shocks, bushes and U bolts
• Fitment: Volkswagen Amarok 3.0 V6 models from 2023 onwards

Final ride height may vary depending on additional front accessories such as bull bars or winches, which may require alternative spring rates.

Why Choose Pedders

• Matched suspension components designed to work together as a system
• Foam Cell shock technology for stable and consistent damping
• Direct replacement components for straightforward installation
• Supported by a 2 year / 40,000km warranty

Compatibility
