Pedders 2 Inch Heavy Duty Load Carrying and Towing Kit

This Heavy Duty Suspension Kit is designed for Ford Ranger 3.0 V6 models from 2023 onwards that are regularly used for load carrying and towing. It raises the vehicle by approximately 50mm to improve ground clearance while enhancing stability and performance under constant load.

Key Features

• 2 inch suspension lift
• Improved load carrying and towing capability
• Increased off-road ground clearance
• Adjustable Foam Cell shock absorbers
• Sintered iron piston shocks with large 40mm bore
• Heavy duty steel suspension components
• Ezifit Struts pre-assembled for easy installation
• Backed by a 2 Year / 40,000km / 25,000 mile warranty

Product Overview

This first-level Heavy Duty kit is designed to address rear sag when towing or carrying loads, offering a noticeable improvement over the standard Ford Ranger suspension. It replaces the original components with matched heavy duty springs and Pedders TrakRyder Adjustable Foam Cell shocks.

The kit is intended to operate with a constant minimum 300kg rear load, including accessories such as canopies and tow bars. For vehicles carrying heavier constant loads, an Extra Heavy Duty option should be considered.

Foam Cell Shock Technology

Foam Cell shock absorbers use a special foam saturated with oil instead of relying on pressurised gas. This design prevents aeration and cavitation, keeping damping forces stable across the full stroke. With greater oil capacity and improved heat dissipation, they resist fade, control temperature, and deliver reliable performance even under demanding use. Their durability makes them well suited for heavy-duty, towing and off-road applications.

Installation & Compatibility

Ezifit Struts are supplied pre-assembled with shock, coil spring, new top mount, bump stop and protective boot. Simply bolt them in without the need for spring compressors or re-using worn parts. The rear springs and hardware are direct replacements for factory components. A professional wheel alignment is recommended after installation for optimum tyre wear and steering response.

This kit is suited to vehicles used for regular load carrying and towing rather than lightly laden daily driving.

Technical Specification

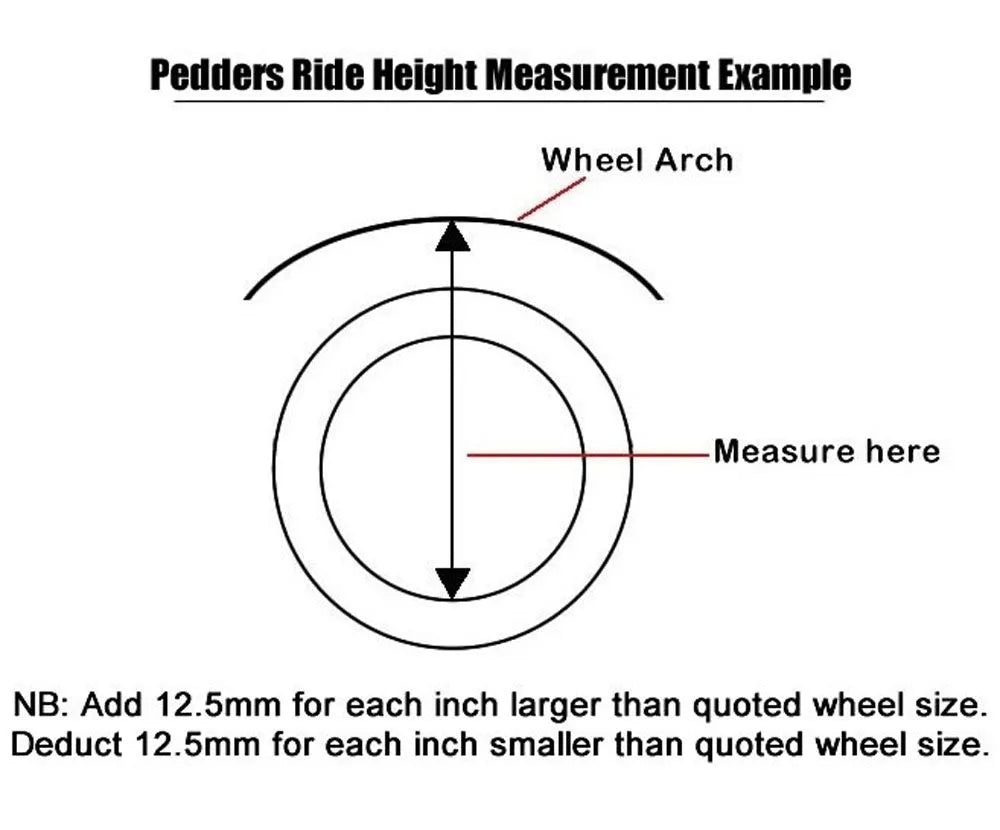

• Front height: 615mm hub centre to wheel arch
• Rear height: Approximately 50mm higher than standard
• Shock bore size: 40mm
• Recommended constant rear load: Minimum 300kg

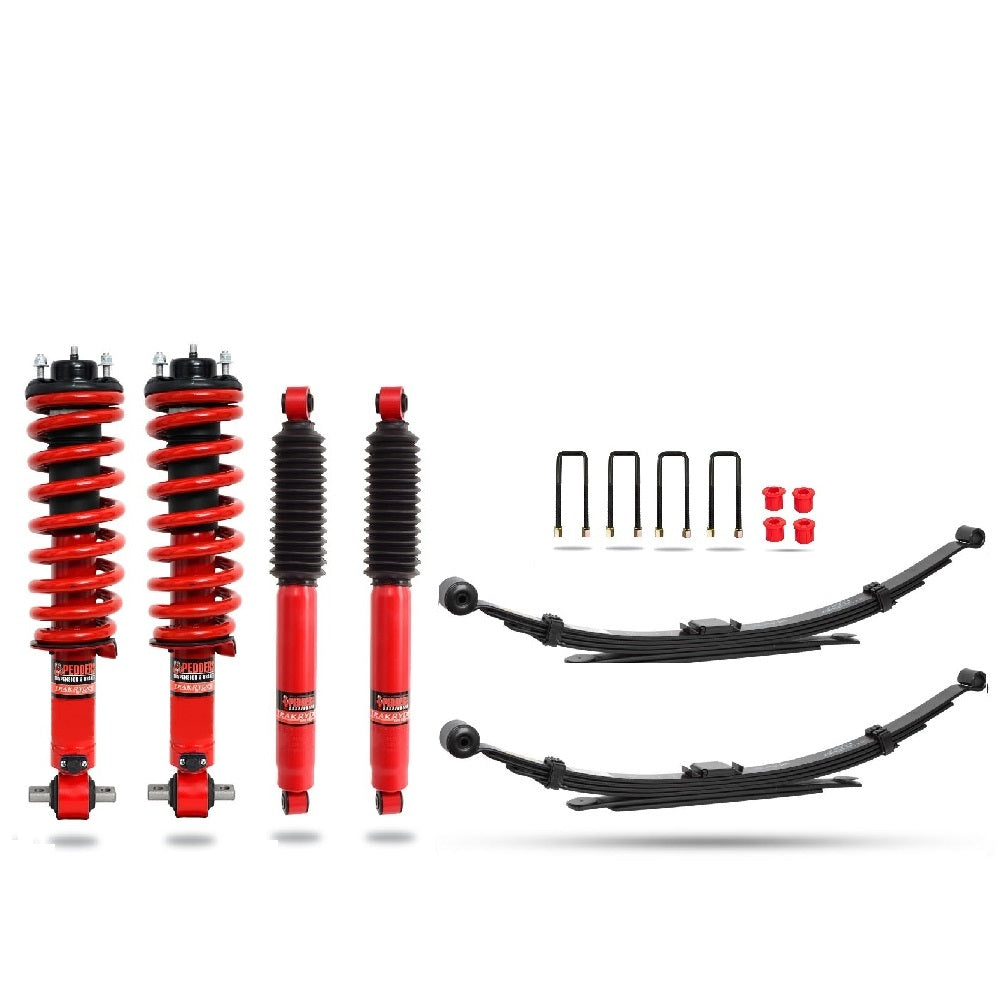

• Included components: Pre-assembled Ezifit Struts, Adjustable Foam Cell shocks, rear leaf springs, bushes and U bolts
• Fitment: Ford Ranger 2023 on 3.0 V6 models

Final ride height may vary depending on additional front equipment such as bull bars or winches. Alternative spring rates may be required if extra accessories are fitted.

Why Choose Pedders

• Matched heavy duty suspension components designed for load carrying and towing
• Adjustable Foam Cell shocks provide stable damping under constant load
• Ezifit Struts simplify installation and replace worn factory components
• Backed by a 2 Year / 40,000km / 25,000 mile warranty

Compatibility
