Pedders 2 Inch Suspension Lift Kit

This Premium Suspension Lift Kit is designed for Ford Ranger 3.0 V6 models from 2023 onwards. It raises the vehicle by approximately 50mm to improve ground clearance and appearance while retaining ride comfort for everyday driving.

Key Features

• 2 inch suspension lift
• Improved ride comfort
• Increased off-road ground clearance
• Adjustable Foam Cell shock absorbers
• Sintered iron piston shocks with large 40mm bore
• Parabolic rear leaf springs
• Ezifit Struts pre-assembled for easy installation
• Backed by a 2 year / 40,000km warranty

Product Overview

This kit replaces the factory suspension components with matched Pedders TrakRyder Adjustable Foam Cell shocks, front coil springs and rear parabolic leaf springs. It is designed to raise the vehicle while maintaining ride quality on vehicles that do not normally carry heavy loads.

The quoted lift height assumes a standard vehicle. Additional front accessories such as winches or bull bars may affect final ride height and could require alternative spring rates. Vehicles used continuously under load or for regular towing should consider heavy-duty alternatives.

Foam Cell Shock Technology

Foam Cell shock absorbers use a special foam saturated with oil instead of relying on pressurised gas. This design prevents aeration and cavitation, keeping damping forces stable across the full stroke. With greater oil capacity and improved heat dissipation, they resist fade, control temperature, and deliver reliable performance even under demanding use. Their durability makes them well suited for heavy-duty, towing and off-road applications.

Installation & Compatibility

Ezifit Struts are supplied pre-assembled with shock, coil spring, new top mount, bump stop and protective boot. Simply bolt them in without the need for spring compressors or re-using worn parts. The rear springs and hardware are direct replacements for factory components. A professional wheel alignment is recommended after installation for optimum tyre wear and steering response.

This kit is comfort-focused and intended for vehicles that are not regularly carrying heavy loads.

Technical Specification

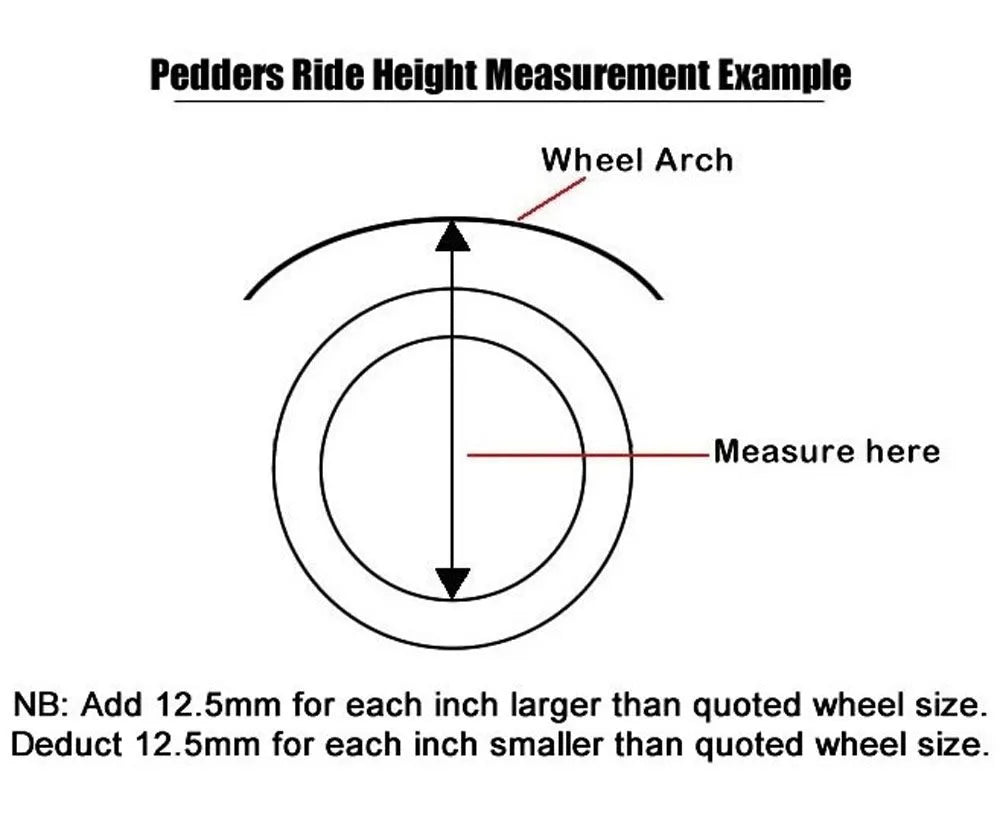

• Front height: 615mm hub centre to wheel arch
• Rear height: Approximately 50mm higher than standard
• Shock bore size: 40mm

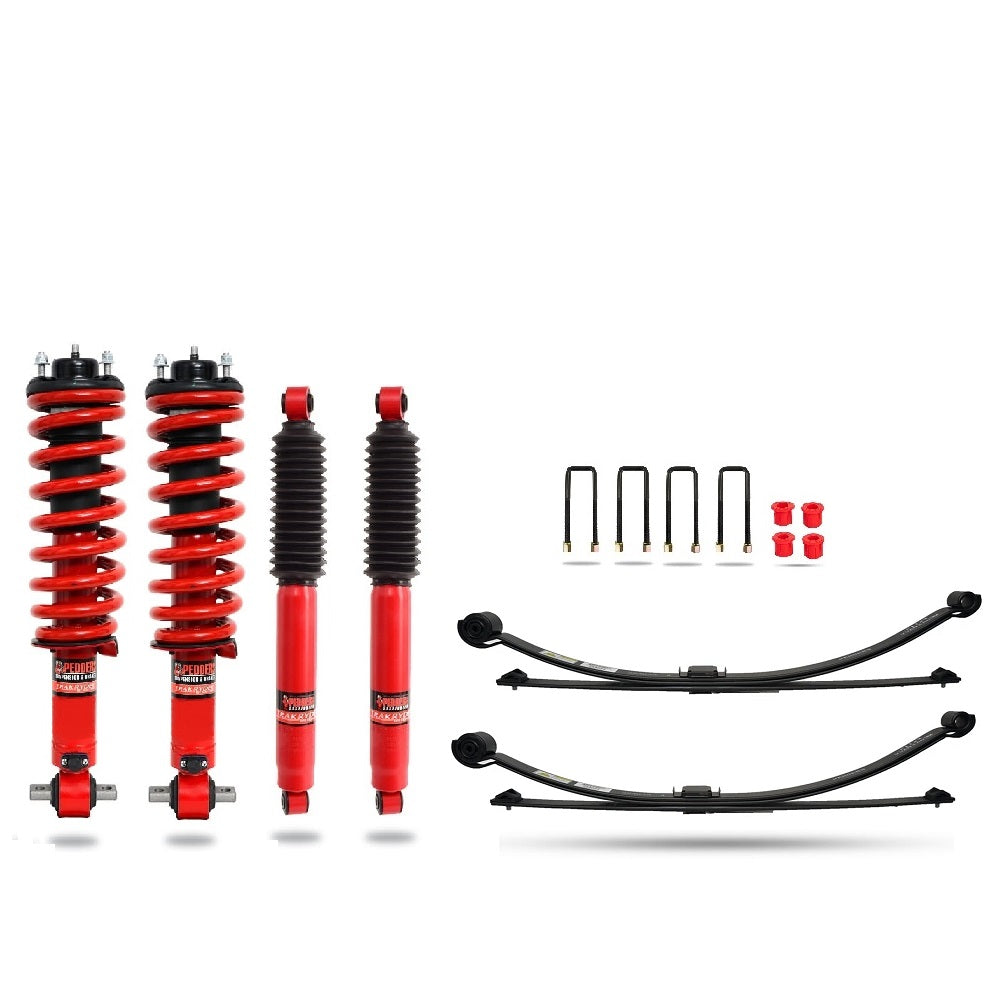

• Included components: Pre-assembled Ezifit Struts, Adjustable Foam Cell shocks, rear parabolic leaf springs, bushes and U bolts
• Fitment: Ford Ranger 2023 on 3.0 V6 models
• Warranty: 2 years / 40,000km

Final ride height may vary depending on additional equipment such as bull bars or winches fitted to the vehicle.

Why Choose Pedders

• Matched suspension components engineered to work as a complete system
• Adjustable Foam Cell shocks for stable and consistent damping
• Direct replacement kit with all required hardware included
• Backed by a 2 year / 40,000km warranty
