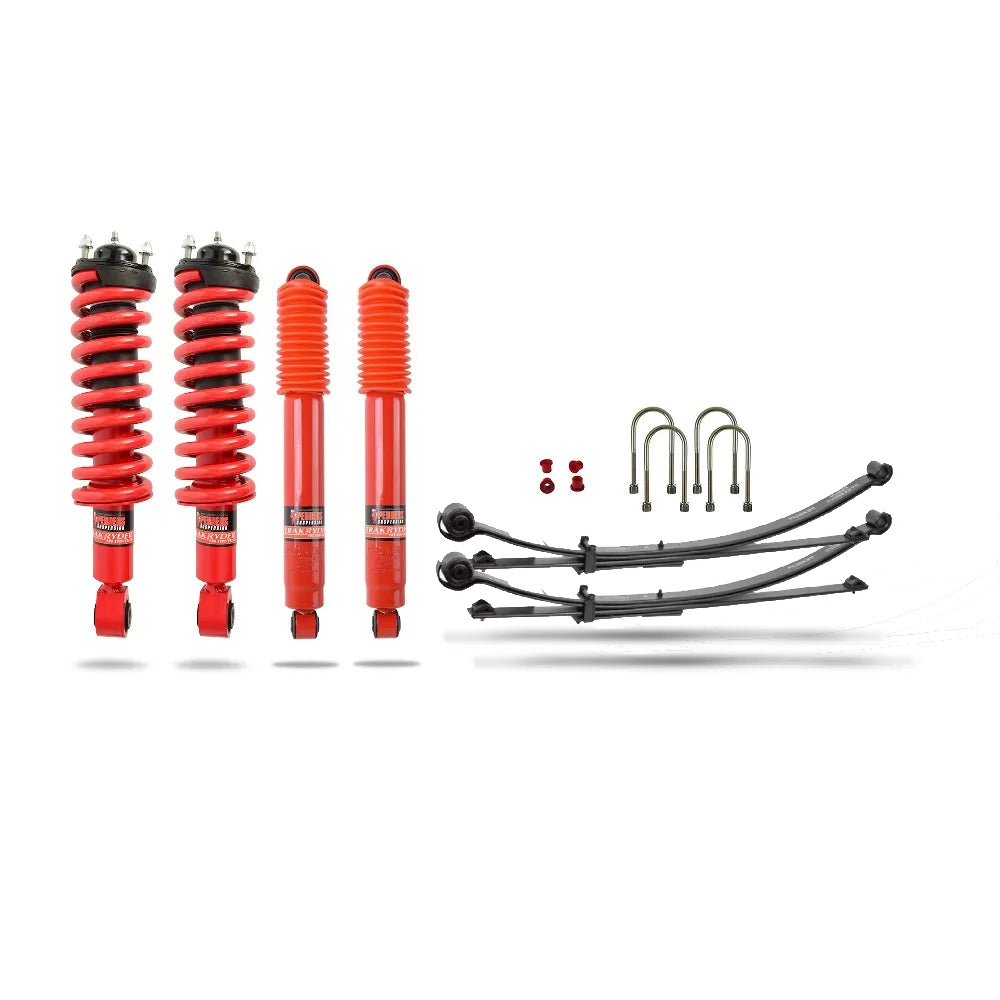

Pedders 1.75 Inch Suspension Lift Kit with Parabolic Leaf Springs for Ford Ranger PX

This suspension lift kit is designed for Ford Ranger PX owners seeking to raise their vehicle while improving ride comfort and ground clearance. It includes assembled struts with Foam Cell shocks, premium coils, and advanced Parabolic Leaf Springs for better handling and durability.

Key Features

• 1.75 Inch lift amount
• Includes Parabolic Rear Leaf Springs
• Improved ride comfort
• Increased off-road ground clearance
• Sintered iron piston shocks with large 40mm bore
• Premium grade steel coil springs

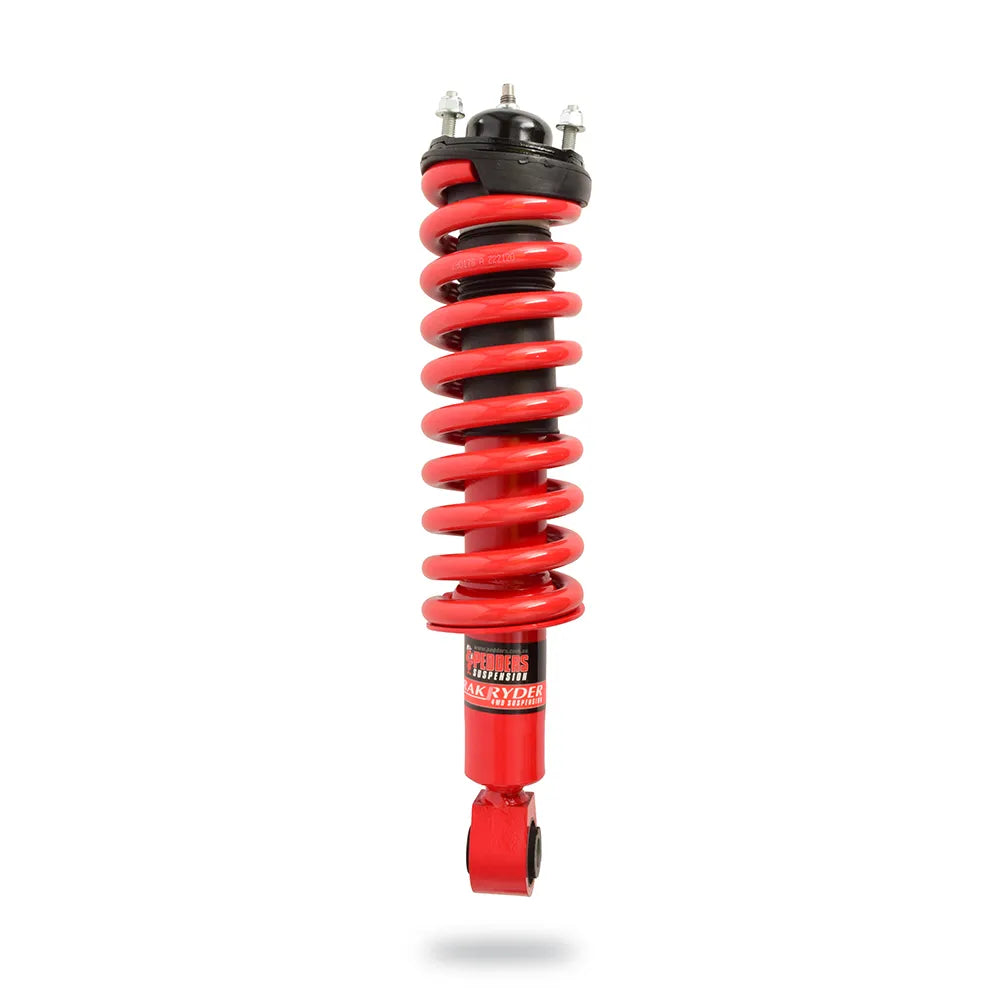

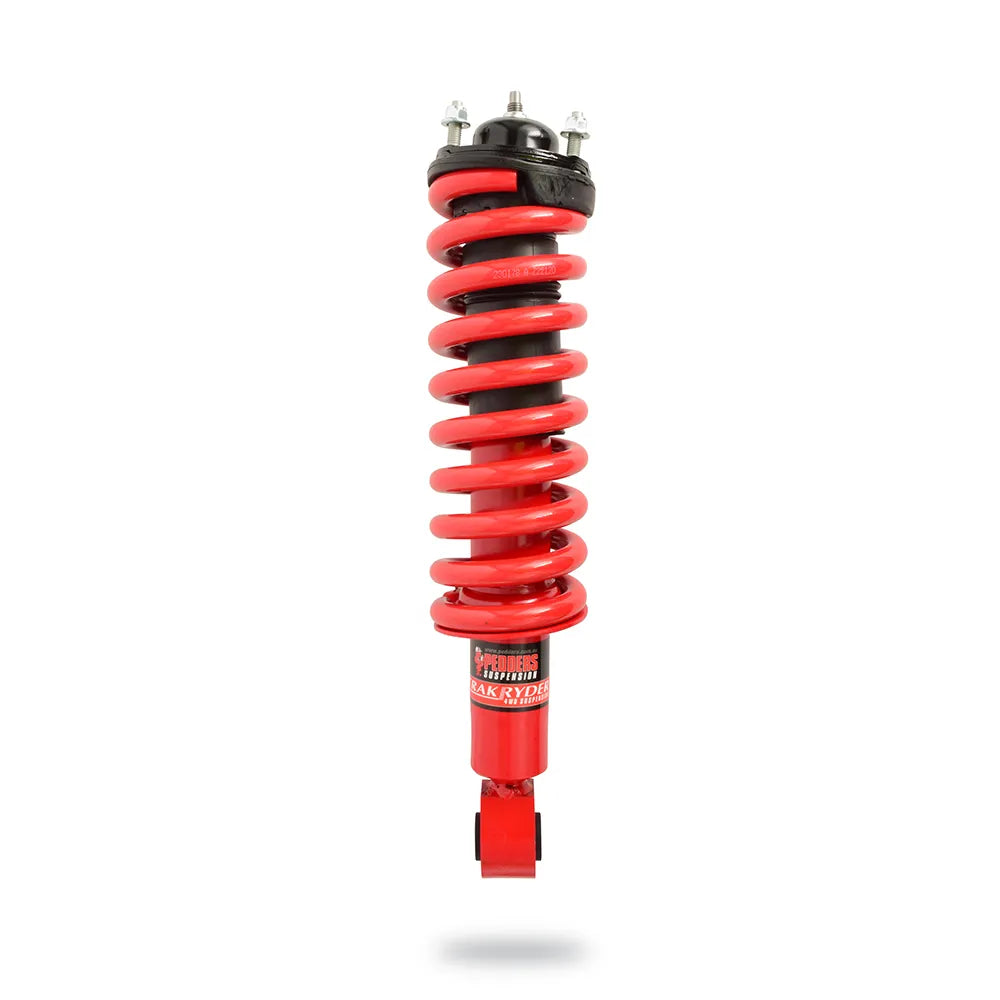

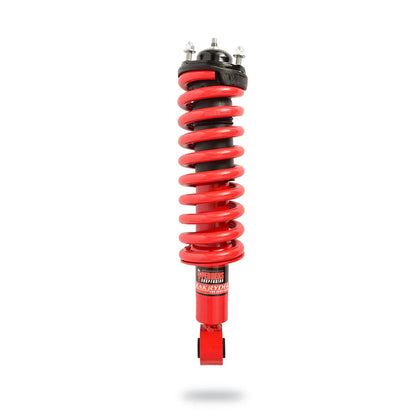

• Comes with fully assembled Ezifit struts including new top mount, bump stop and boot
• 2 year / 40,000km warranty

Product Overview

This premium lift kit raises the Ford Ranger by approximately 40mm, enhancing ground clearance and visual stance. It is optimised for vehicles not regularly carrying heavy loads, improving unladen ride quality by reducing harshness on uneven surfaces. The kit includes front coil springs, new rear Parabolic Leaf Springs, and TrakRyder Foam Cell shocks tailored to offer better ride comfort without sacrificing load carrying capacity.

The kit accommodates larger tyres and is suitable for daily driving as well as light off-road use. For vehicles frequently towing or carrying heavy loads, heavier-duty options are recommended. The fully assembled struts simplify installation and replace original components without requiring spring compressors or other modifications.

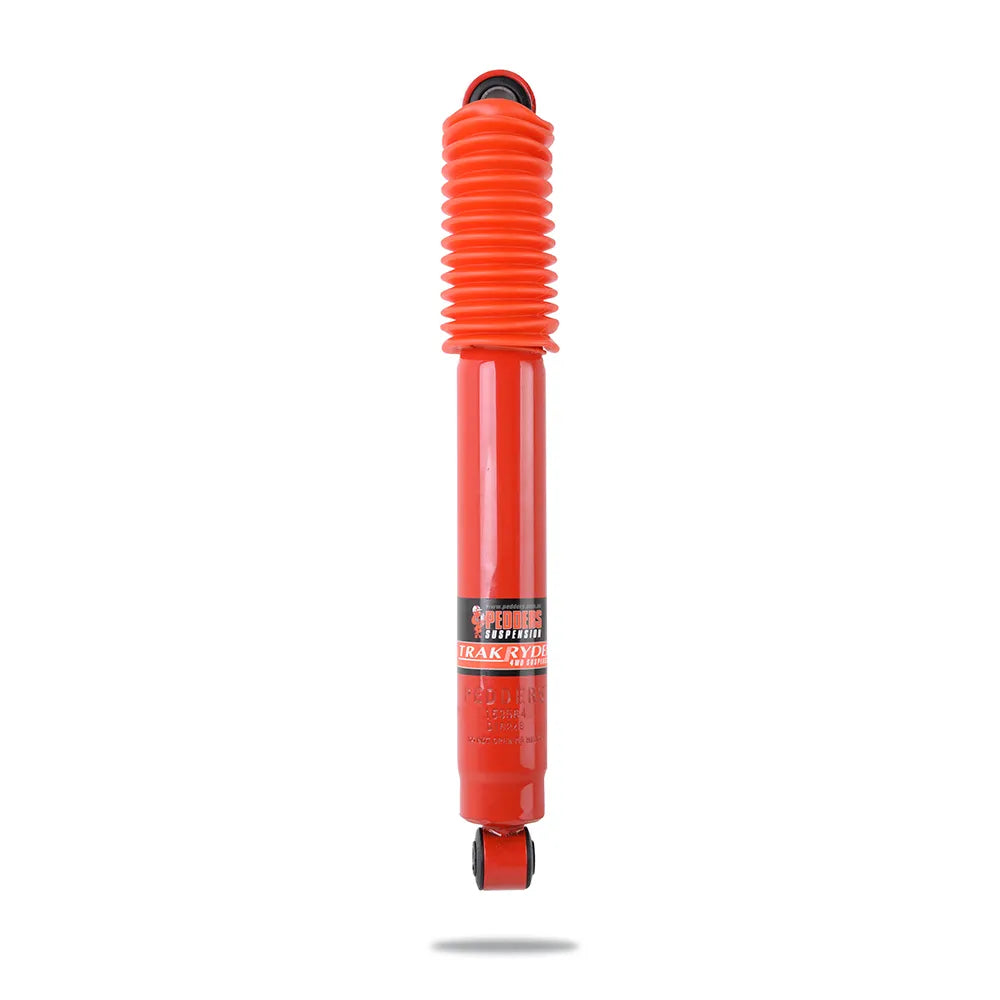

Foam Cell Shock Technology

Foam Cell shock absorbers use a special foam saturated with oil instead of relying on pressurised gas. This design prevents aeration and cavitation, keeping damping forces stable across the full stroke. With greater oil capacity and improved heat dissipation, they resist fade, control temperature, and deliver reliable performance even under demanding use. Their durability makes them well suited for heavy-duty, towing and off-road applications.

Parabolic Leaf Spring Technology

This kit utilizes modern Parabolic Leaf Springs instead of traditional multi-leaf packs. By tapering the thickness of the leaves, this design eliminates inter-leaf friction, providing a significantly smoother ride. Key advantages include:

• Improved Ride Comfort: Reduced friction allows the suspension to absorb bumps more effectively than standard springs.
• Weight Reduction: They are significantly lighter than conventional leaf springs, improving payload potential and fuel efficiency.
• Durability: Fewer leaves and contact points reduce the risk of rust and wear between layers.
• Noise Reduction: The design ensures quieter operation by eliminating the squeaking often associated with friction in multi-leaf springs.

Installation & Compatibility

The kit features fully assembled Ezifit struts that bolt straight onto the vehicle, eliminating the need for spring compressors or reusing old parts. No cutting or welding is necessary for installation. After fitting, a professional wheel alignment is strongly recommended to optimise vehicle performance.

This kit is designed primarily for vehicles that do not regularly carry heavy load; heavy-duty options should be considered for constant laden use.

Technical Specification

• Lift: 1.75 Inch (approx. 40mm height increase)

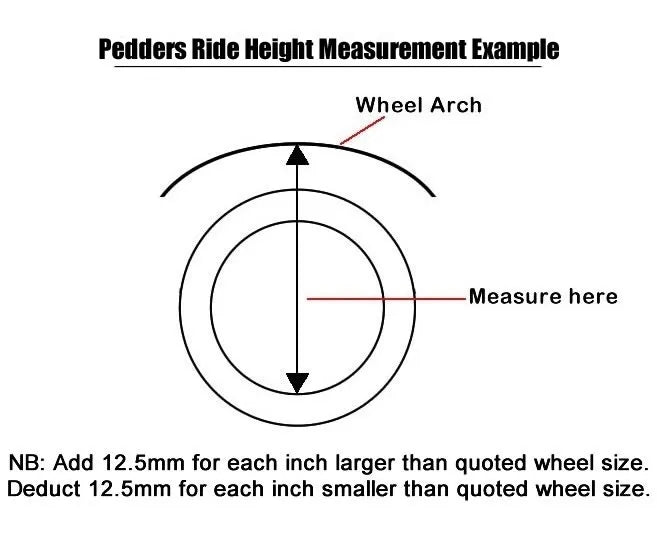

• Front height: 840mm with 17 inch wheels
• Rear lift: approx. 40mm higher than standard
• Shock bore: 40mm

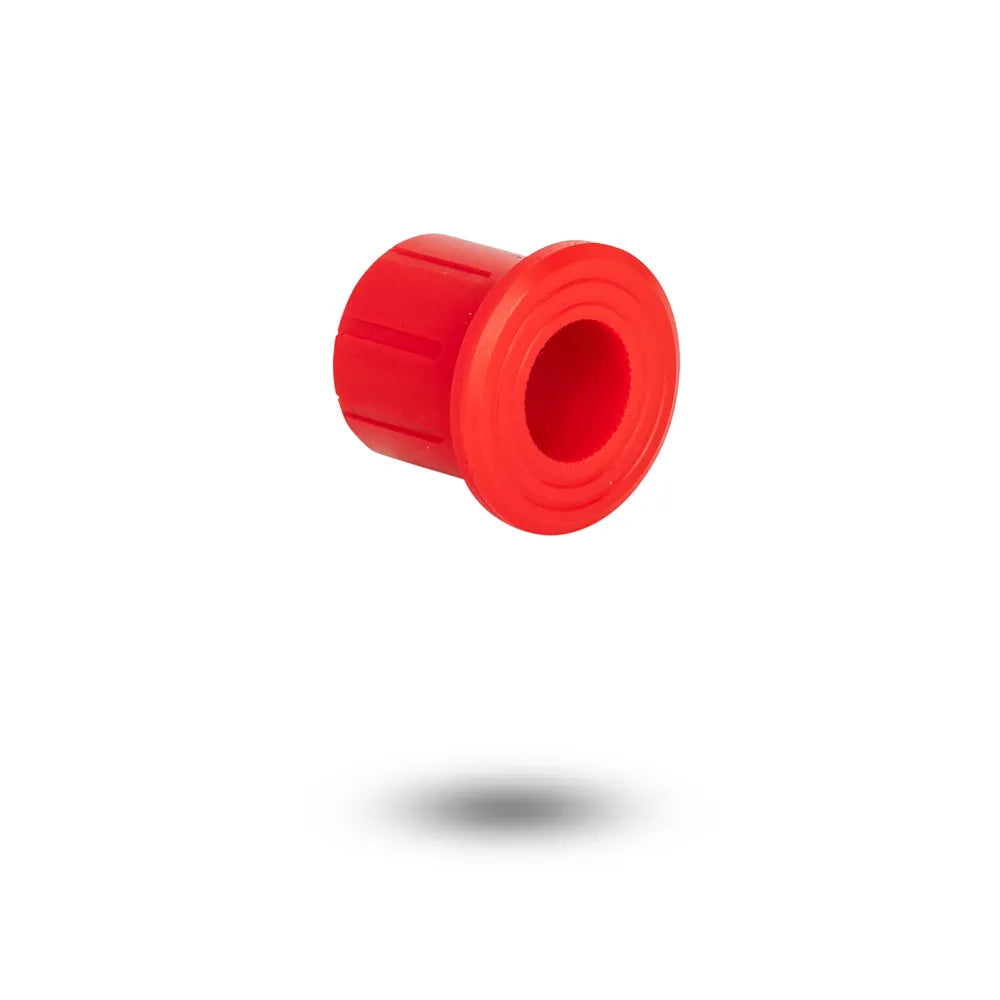

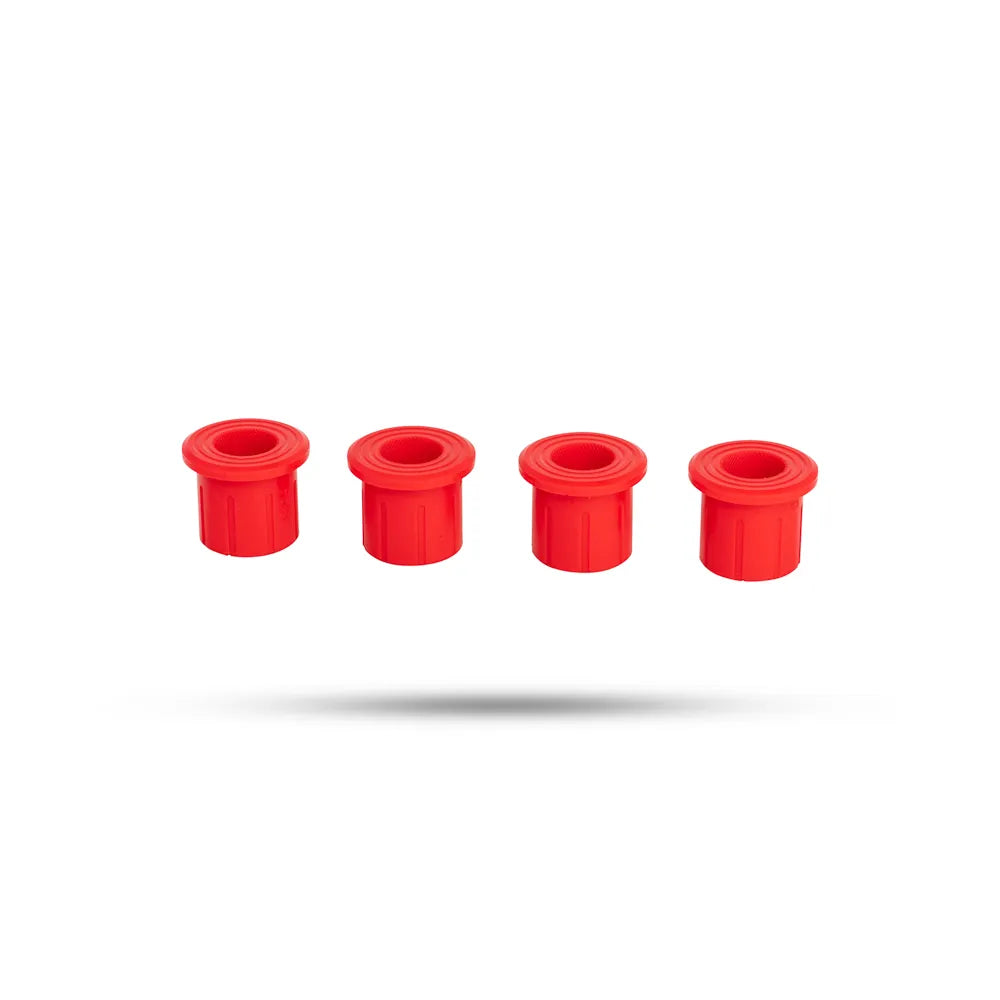

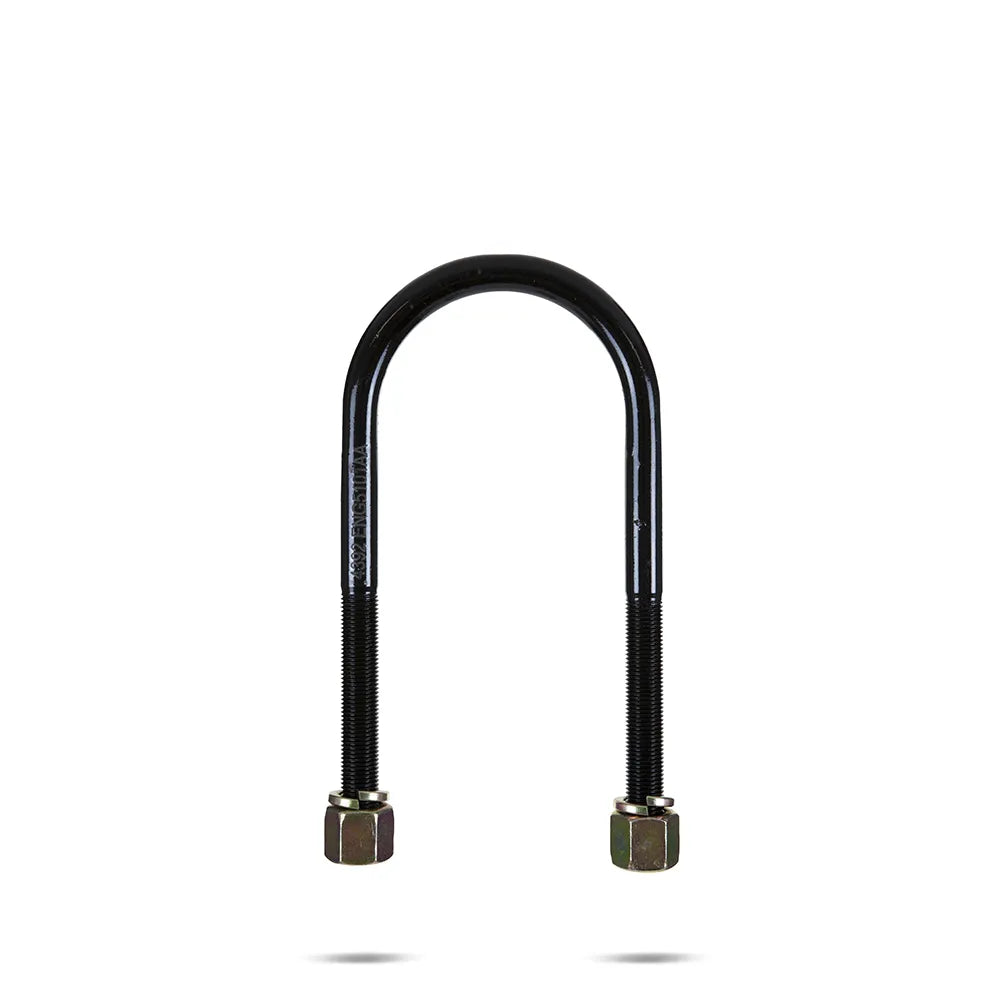

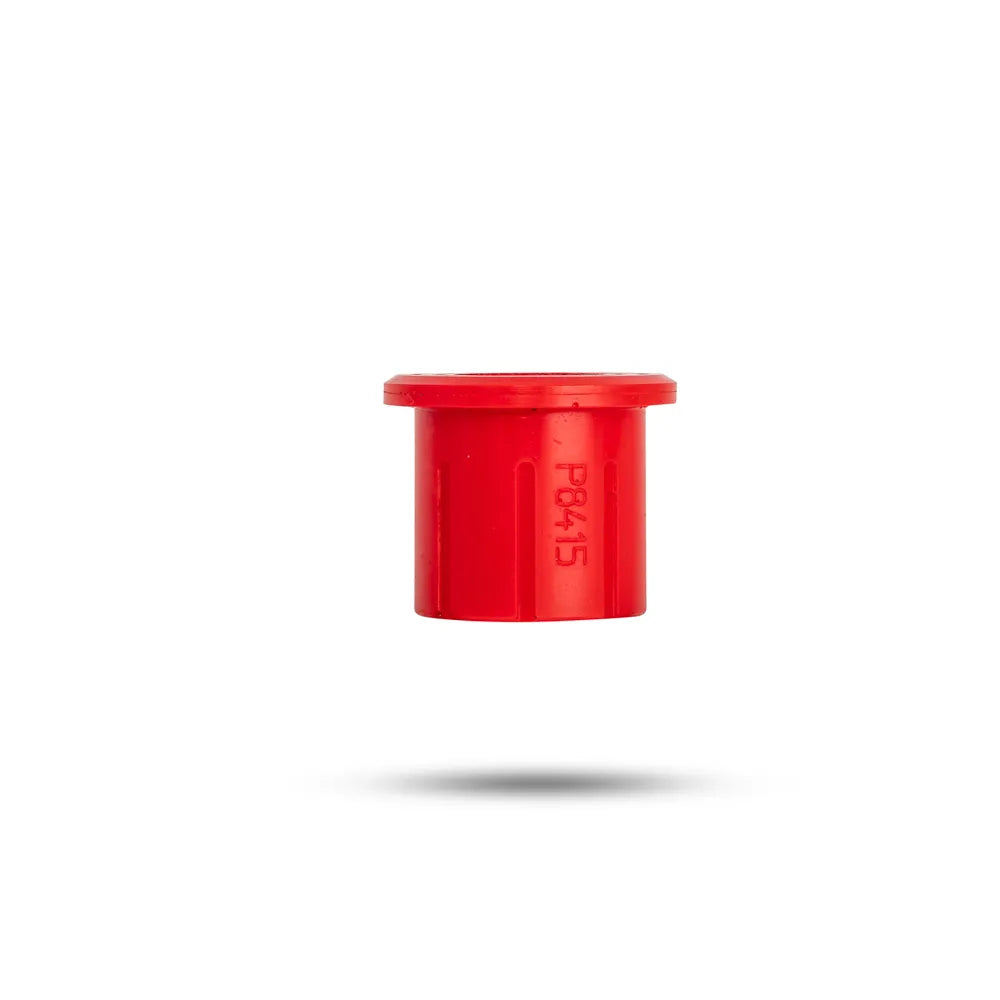

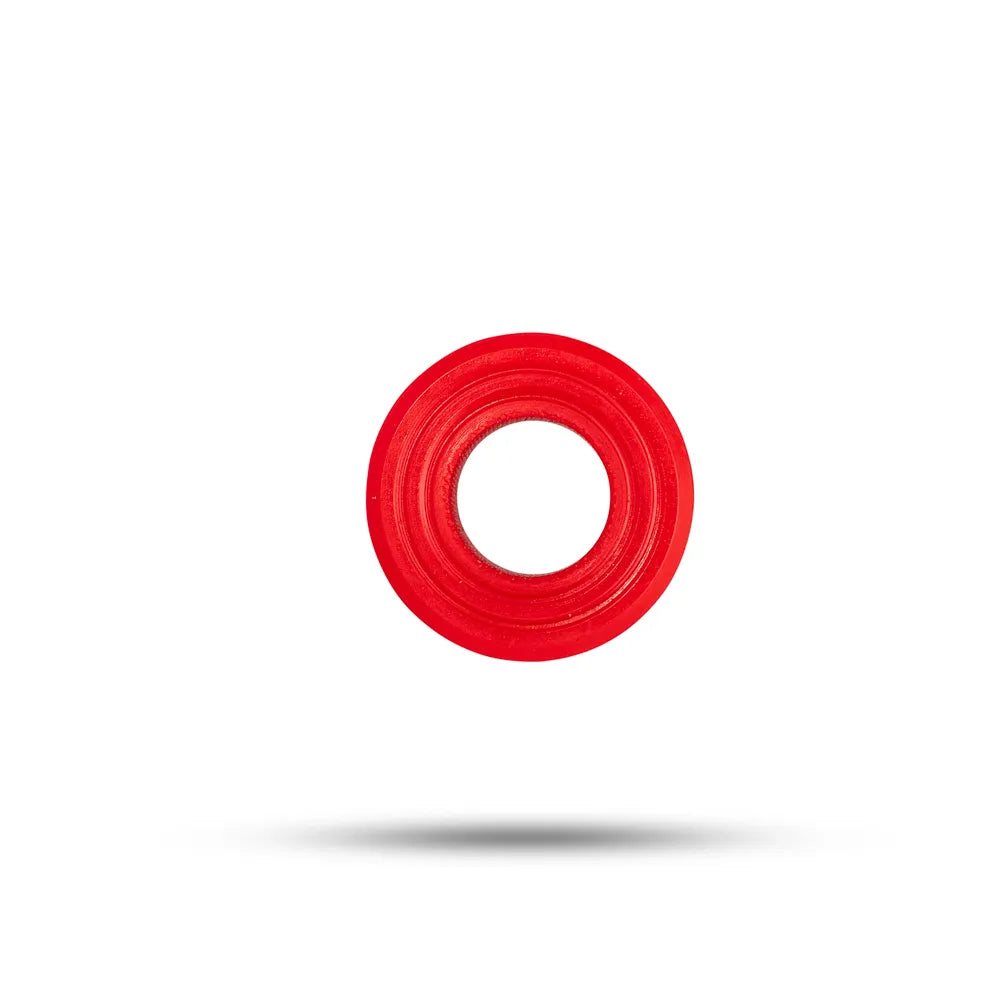

• Includes front coil springs, rear Parabolic Leaf Springs, Foam Cell shocks, bushes and U bolts
• Warranty: 2 year / 40,000km

Note: Final installed height may vary if additional equipment such as winches or bull bars are fitted. Different spring rates may be required for such applications.

Why Choose This Kit

• Matched components designed specifically for Ford Ranger PX
• Proven Foam Cell shock technology for stable damping and improved ride quality
• Superior comfort and articulation with Parabolic Springs
• Easy installation with fully assembled struts
• Backed by 2 year / 40,000km warranty
